Seam taping machines with tape: PFAFF 8303i
Heat sealing of seams with tape on waterproof, breathable and water-resistant materials. Precise solutions for technical clothing, protective equipment and industrial applications.
Maquinorya is the official representative of PFAFF Industrial in Spain for welding and heat sealing machines. See on the PFAFF websitePFAFF 8303ix heat sealing machines for professional seam sealing in the textile industry.
What is a heat sealing machine?
Hot-air taping machines seal seams continuously on waterproof, breathable and water-resistant materials by applying a heat-activated adhesive tape. They are essential in the manufacture of workwear, protective clothing, outdoor and sportswear, footwear and automotive products.
- Sealing temperature: max. 650 °C
- Speed: max. 7 m/min (option up to 20 m/min)
- Built-in electronic tape cutter
- Different brands and models available
Seam sealing tapes
The heat sealing machine applies a heat-activated adhesive tape over the seam using hot air and pressure. The tape must be compatible with the fabric and with the working temperature: we work with Gluetex SST sealing tapes and the whole range of seam sealing tapes and heat-activated adhesive tapes.
For outdoor, sports and protective clothing we also have tapes from Bamalosa: the three-layer tape for outdoor garments, applied at 450-530 °C, plain knit and lycra tapes, and EVA and taffeta tapes for medical coveralls. We send you a sample to test on your machine before you order.
PFAFF 8303i machines with prices, such as the 8303i-340/001 Baseline, are in our shop. Data sheet for the PFAFF 8303ix-340/011.
Already working with a heat sealing machine? You have the parts of a heat sealing machine explained with photos and the step-by-step guide why doesn't the heat sealing tape stick?

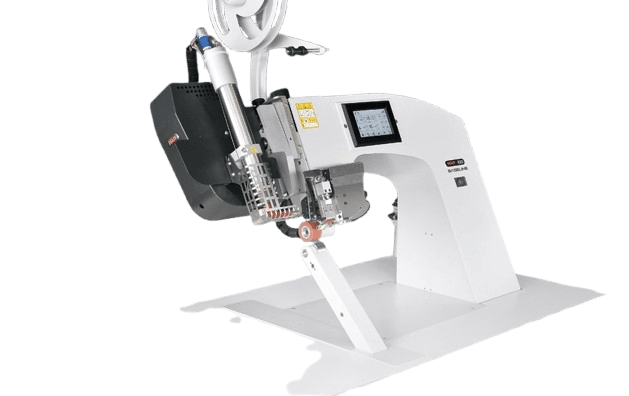

PFAFF 8303i-340/001 Baseline
Economical, versatile hot air heat sealing machine.
Two independent feed motors.
Variable post: 25, 28 and 32 mm.
Interchangeable roller: Ø 45 mm (25 mm for tight curves).
Ideal as the configurable base model of the series.
Main features
- Two independent feed motors for repeatable sealing quality
- Variable post of 25, 28 and 32 mm and interchangeable rollers for multiple applications
- Electronic control of temperature (max. 650 °C), speed and sealing pressure
- Independently driven tape knife with precision adjustment
Technical specifications
- Max. temperature: 650 °C
- Max. speed: 7 m/min
- Tape width: 10-30 mm (depending on post)
- Post: interchangeable 25, 28 or 32 mm
- Roller diameter: 45 mm standard (25 mm optional for curves)
- Heating power: 3,600 W
- Power consumption: 3,700 W
- Air consumption (6 bar): approx. 150 l/min
- Supply voltage: single-phase 230 V, 50/60 Hz
Applications
Designed as the basic, economical model of the 8303i series, with configurable post and roller to suit workwear, outdoor and sportswear, protective equipment, footwear and automotive. Its independently driven tape knife reduces material consumption and makes changing between productions easier.
Frequently asked questions
What sets the Baseline apart from the rest of the 8303ix series? It is the configurable entry model of the series: it has an interchangeable post (25, 28 and 32 mm) and two independent feed motors, so it adapts to different applications without having to choose a fixed model.
Does it include a tape cutting knife? Yes, it has an independently driven tape knife with precision adjustment, which avoids manual trimming and reduces tape waste.

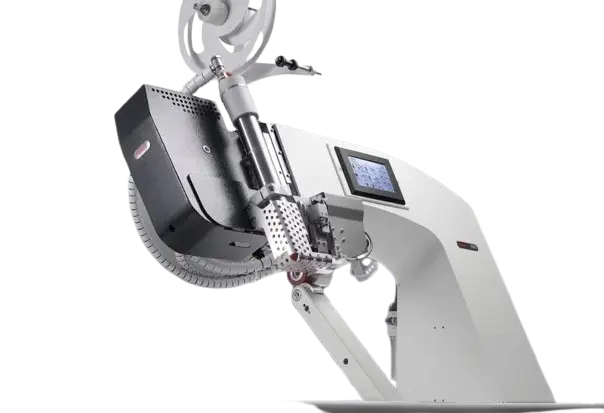

PFAFF 8303ix-140/011
Hot air heat sealing machine.
One feed motor.
Tape width: 10-20 mm.
Post: 25 mm. Roller: Ø 45 mm.
Ideal for workwear and sportswear.
Main features
- A single feed motor for simple, reliable operation in basic production
- Standard 25 mm post suitable for straight seams on waterproof materials
- 45 mm roller for a larger contact surface and even sealing of 10-20 mm tapes
-
Electronic temperature control up to 650 °C with speed and pressure adjustment
Technical specifications
- Max. temperature: 650 °C
- Max. speed: 7 m/min
- Tape width: 10-20 mm
- Post width: 25 mm
- Roller diameter: 45 mm
Applications
Ideal for producing workwear and sportswear that need basic seam sealing. Suitable for medium-run waterproof garments such as jackets, trousers and work overalls, outdoor sportswear and rainwear. Its single motor makes it perfect for workshops with moderate production that need reliability without technical complexity.
Â
Frequently asked questions
What sets the 8303ix-140/011 apart from other models? It is the entry model of the 8303ix series: a single feed motor makes it easier to use and maintain, so it is ideal for workshops looking for a reliable heat sealing solution without added complexity.
What type of tape does it take? It works with heat sealing tapes between 10 and 20 mm wide, compatible with standard waterproof and breathable materials such as Gore-Tex, softshell and similar.
Â
Â
PFAFF 8303ix-243/011
Hot air heat sealing machine.
Two independent feed motors.
Tape width: 10-25 mm.
Post: 28 mm. Roller: Ø 43 mm.
Ideal for outdoor and protective clothing.
Main features
- Two independent feed motors for maximum uniformity in tape sealing
- 28 mm post with 43 mm roller optimised for mid-range outdoor materials
- Takes 10-25 mm heat sealing tape with automatic feed adjustment
-
Full electronic control of temperature (max. 650 °C), speed and sealing pressure
Technical specifications
- Max. temperature: 650 °C
- Max. speed: 7 m/min
- Tape width: 10-25 mm
- Post width: 28 mm
- Roller diameter: 43 mm
Applications
Designed for seam sealing on high-end outerwear, personal protective equipment (PPE) and certified waterproof workwear. Its two motors ensure continuous, slip-free feeding on technical materials such as multi-layer membranes, laminated fabrics and high-strength fabrics. Widely used for mountain clothing, professional rainwear and high-performance sportswear.
Frequently asked questions
What is the advantage of two feed motors? The two motors work in sync to pull the material from both sides of the seam, preventing slippage and making sure the tape is applied evenly, even on slippery technical fabrics.
Is it suitable for series production? Yes. Its dual-motor system and the ability to work with tapes up to 25 mm make it very well suited to medium to high-volume production lines that need consistent quality.
Â
Â
PFAFF 8303ix-245/011
Hot air heat sealing machine.
Differential feed.
Tape width: 10-30 mm.
Post: 28 mm. Roller: Ø 45 mm.
For premium technical materials.
Main features
- Differential feed to handle the material well, including technical and delicate fabrics
- 28 mm post with 45 mm roller for a larger sealing surface on wide tapes
- Takes 10-30 mm heat sealing tapes, the widest range of the dual-motor 8303ix models
- Electronic control of temperature, speed and pressure with program memory
Technical specifications
- Max. temperature: 650 °C
- Max. speed: 7 m/min
- Tape width: 10-30 mm
- Post width: 28 mm
- Roller diameter: 45 mm
Applications
The PFAFF 8303ix-245/011 is aimed at producing premium technical materials where sealing quality is critical: chemical protective clothing, highly waterproof suits, medical material and garments for extreme use. Its differential feed minimises feeding errors on delicate or high-density fabrics, making it the choice of manufacturers who cannot afford sealing defects in their products.
Â
Frequently asked questions
What is differential feed and why does it matter? Differential feed means the two feed rollers can move at slightly different speeds, automatically compensating for differences in fabric tension. This makes it possible to seal elastic, very thick or delicate materials without distortion or wrinkles.
How does it differ from the 243/011? Both have dual motors, but the 245/011 adds differential feed and takes tapes up to 30 mm wide (compared with 25 mm on the 243), which places it for more demanding applications with premium materials.
Â
PFAFF 8303ix-340/011
Hot air heat sealing machine.
Narrow 25 mm post.
Tape width: 10-20 mm.
Roller: Ø 40 mm (tight curves).
Ideal for footwear and automotive.
Main features
- Narrow 25 mm post to reach seams on sharp curves and complex pieces
- 40 mm roller for precise sealing in footwear, automotive and moulded parts
- Electronic control of temperature (max. 650 °C), speed and sealing pressure
- Sealing of 10-20 mm wide tape with automatic adjustment
Technical specifications
- Max. temperature: 650 °C
- Max. speed: 7 m/min
- Tape width: 10-20 mm
- Post width: 25 mm
- Roller diameter: 40 mm
Applications
Specially designed for sealing seams on tight curves: uppers of technical and waterproof footwear, work and mountain gloves, automotive seat components and any piece with complex geometry that needs access to hard-to-reach areas.
Frequently asked questions
Why a narrow post? It gives access to seams on tight curves and in confined spaces where a wider post cannot reach, making it ideal for technical footwear and three-dimensional pieces.
Is it available with a warranty? Yes, Maquinorya supplies it with a one-year warranty, commissioning and technical service with original spare parts.
PFAFF 8303ix-341/011
Hot air heat sealing machine.
Versatile 28 mm post.
Tape width: 10-25 mm.
Roller: Ø 41 mm.
High standard productivity.
Main features
- Versatile 28 mm post balanced for high productivity in standard applications
- 41 mm roller for efficient sealing on straight and slightly curved seams
- Full electronic control of temperature (max. 650 °C), speed and pressure
- Takes 10-25 mm wide sealing tape for greater production flexibility
Technical specifications
- Max. temperature: 650 °C
- Max. speed: 7 m/min
- Tape width: 10-25 mm
- Post width: 28 mm
- Roller diameter: 41 mm
Applications
Frequently asked questions
Is it suitable for series production? Yes, it is the most versatile option in the 8303ix series, designed for high productivity in standard production with quick configuration changes.
What support does Maquinorya offer? Installation, operator training, a one-year warranty and after-sales technical service with original spare parts in stock.
PFAFF 8303ix-342/011
Hot air heat sealing machine.
Wide 32 mm post.
Tape width: 10-30 mm.
Roller: Ø 45 mm.
For thick materials and the automotive sector.
Main features
- The widest post in the 8303ix series (32 mm) for wider sealing tapes
- 45 mm roller for maximum contact surface on thick materials
- Takes sealing tape up to 30 mm wide for highly waterproof seams
- Especially suited to thick materials in heavy industry and automotive
Technical specifications
- Max. temperature: 650 °C
- Max. speed: 7 m/min
- Tape width: 10-30 mm
- Post width: 32 mm
- Roller diameter: 45 mm
Applications
Frequently asked questions
When should you choose the 32 mm post? When working with wide sealing tapes (up to 30 mm) or thicker materials that need more pressure and sealing surface for a completely waterproof seam.
Do you have spare parts available? Yes, at Maquinorya we keep original PFAFF spare parts in stock for the whole 8303ix series, keeping downtime to a minimum when maintenance is needed.
PFAFF 8330-040
Band heat sealing for waterproof and breathable materials. Front post. Differential feed with two independent motors. Max. speed 7 m/min.
Main features
- Band heat sealing with front post system for optimal access to the seam
- Differential feed with two independent motors for perfect adaptation to shaped pieces
- Electronic control of temperature and speed for precise sealing on waterproof materials
- High-productivity version for waterproof and breathable clothing in continuous production
Technical specifications
- Type: band heat sealing
- Feed system: differential feed with two independent motors
- Post: front
- Max. speed: 7 m/min
- Temperature: electronic control
Applications
Frequently asked questions
What is differential feed? Differential feed with two independent motors controls the speed of the upper and lower rollers separately, so the feed can be adapted to pieces with different degrees of curvature without the material stretching or wrinkling.
What is the difference between band heat sealing and tape heat sealing? Band heat sealing applies heat through a continuous band or roller onto the sealing tape, while hot air sealing uses an air nozzle. The band gives more even contact with the tape.
PFAFF 8330-041
Band heat sealing for garment manufacturing. Dynamic sealing with automatic heating power adjustment. Programming of segments and complete cycles.
Main features
- Band heat sealing with dynamic sealing and automatic heating power adjustment
- Programming of segments and complete cycles for production at different speeds
- Adaptive control that adjusts power according to feed speed
- Ideal for garment production with speed variations during the sealing cycle
Technical specifications
- Type: band heat sealing
- System: dynamic sealing with automatic power adjustment
- Programming: segments and complete cycles
- Max. speed: 7 m/min
- Temperature: adaptive control
Applications
Frequently asked questions
What is dynamic sealing? It is a system that automatically adjusts heating power according to feed speed: when the operator slows down in complex areas, the power drops automatically so that the temperature on the material is always correct.
Is it suitable for seams on corners? Yes, it is especially suitable for seams on corners and areas where speed has to be reduced, thanks to its automatic power adjustment system that ensures sealing even in those areas.
PFAFF 8330-042
Band heat sealing for outdoor and protective clothing. Temperature monitoring with two sensors. Independently driven tape cutter.
Main features
- Band heat sealing with dual temperature sensor for precise monitoring
- Built-in independently driven tape cutter for greater productivity
- Electronic control of temperature and speed for sealing outdoor and protective clothing
- Quality control system with dual real-time temperature monitoring
Technical specifications
- Type: band heat sealing
- Temperature sensors: 2 (continuous monitoring)
- Tape cutter: built-in, independently driven
- Max. speed: 7 m/min
- Temperature: dual sensor control
Applications
Frequently asked questions
Why two temperature sensors? The dual sensor monitors the temperature at two different points of the sealing process at the same time, making sure the tape receives exactly the right temperature across its whole width and detecting any deviation instantly.
Does it include a tape cutter? Yes, the independently driven tape cutter is built into the machine and cuts the tape at the end of the seam without interrupting the process, improving productivity and finish.

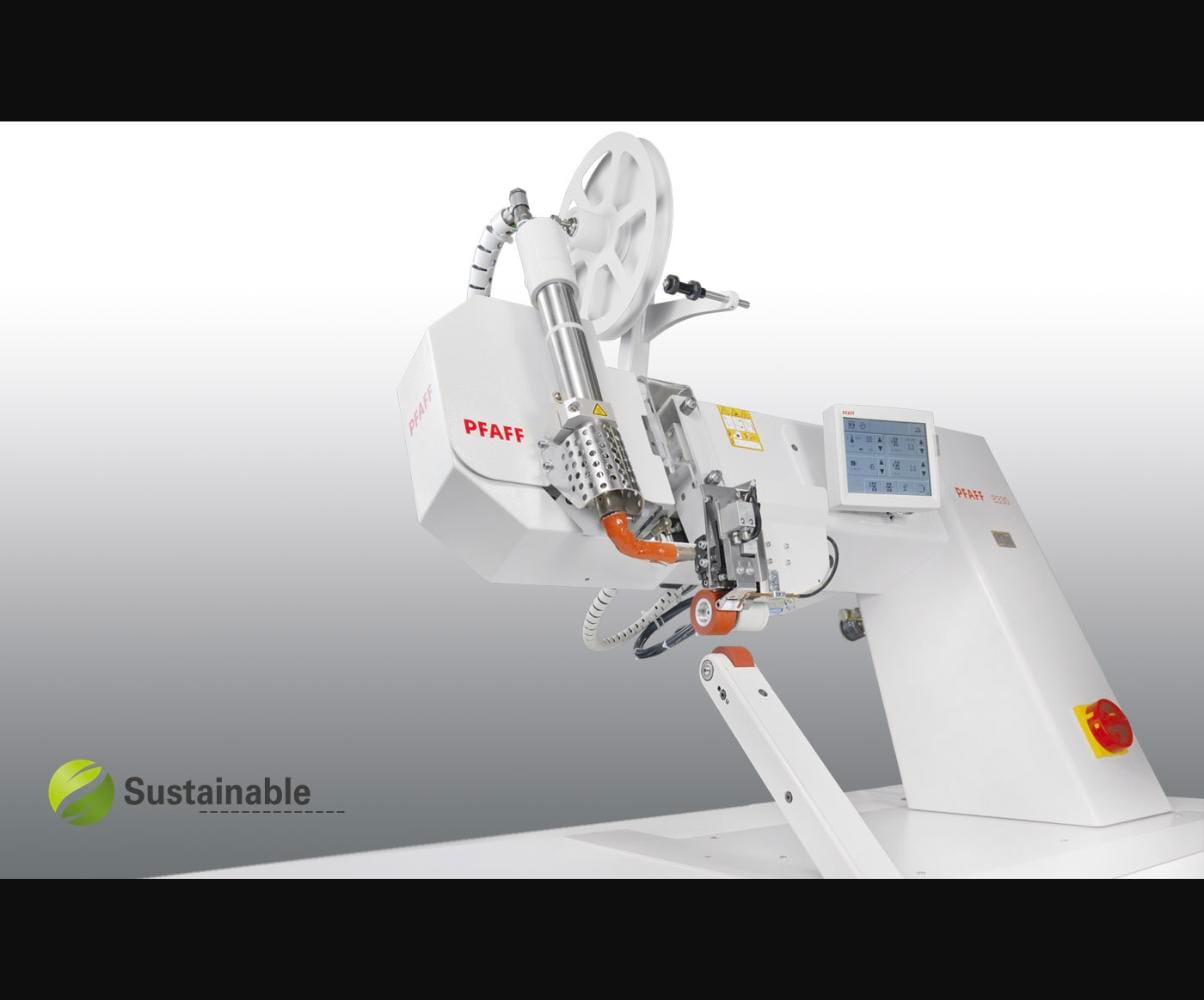

PFAFF 8330-043
Band heat sealing for advanced industrial use. Variable roller system. Parameters transferable between machines. Max. temperature 650 °C. Power: 3,600 W.
Main features
- Variable roller system to adapt to different seam geometries
- High power of 3,600 W for sealing stronger technical materials
- Parameters transferable between machines to synchronise production lines
- Max. temperature 650 °C with precise electronic control for intensive industrial use
Technical specifications
- Type: band heat sealing
- Power: 3,600 W
- Max. temperature: 650 °C
- Roller system: variable
- Max. speed: 7 m/min
- Parameters: transferable between machines
Applications
Frequently asked questions
What does it mean that parameters are transferable between machines? Program settings can be exported and imported between different units of the same model, so the whole production line works with exactly the same parameters without reconfiguring each machine individually.
What is the higher power of 3,600 W for? The higher power makes it possible to seal stronger or thicker materials, or to work faster with standard materials, increasing productivity in intensive industrial applications.

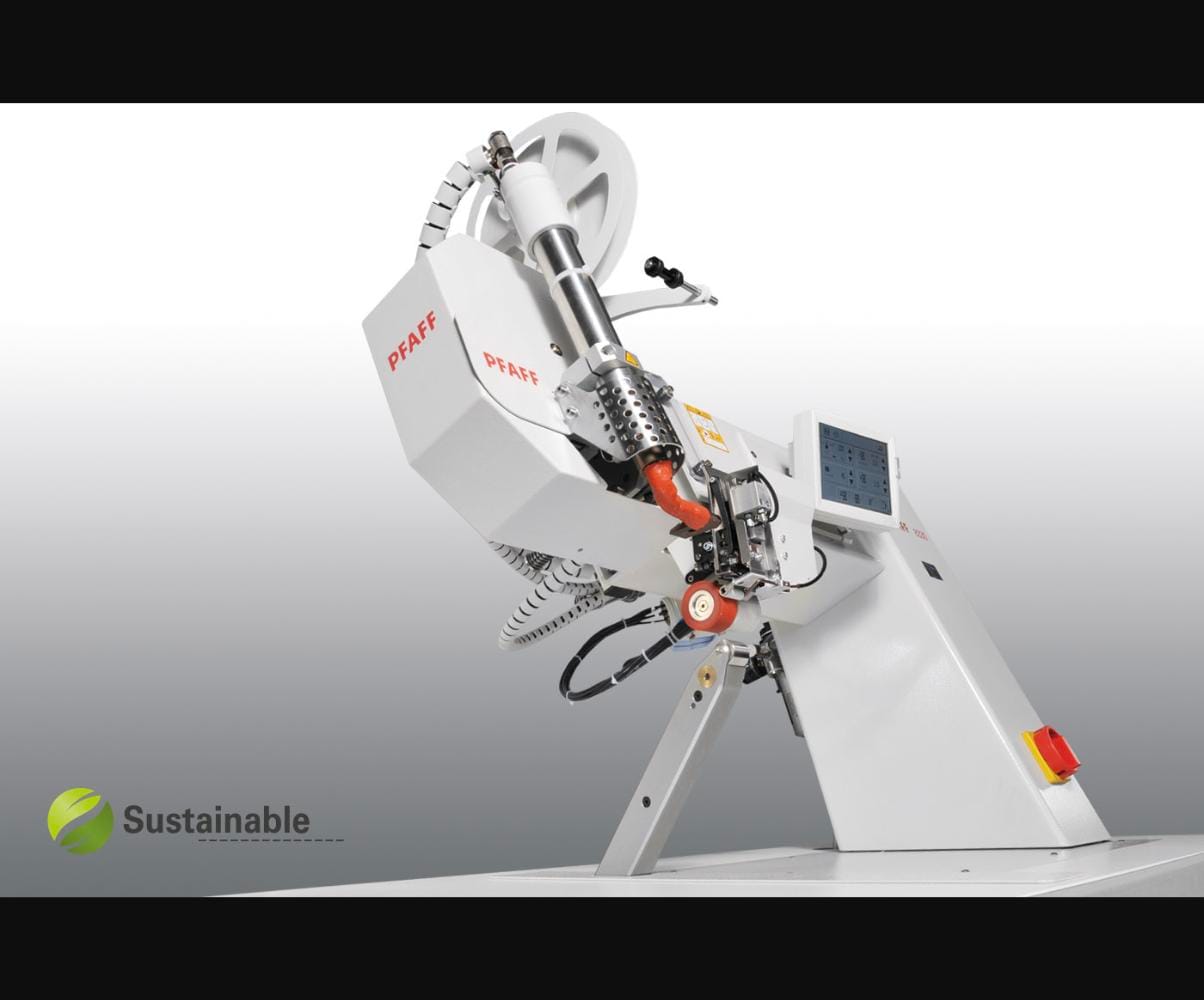

PFAFF 8330-243
Band heat sealing for footwear and automotive. Narrow post from the rear. Ideal for seams on shoes and padded car seats.
Main features
- Band heat sealing with narrow post from the rear for footwear and automotive
- Optimal access to internal seams on footwear and padded car seats
- Electronic control of temperature and speed for precise sealing on technical materials
- Specialised design for sealing pieces with complex shapes and three-dimensional geometry
Technical specifications
- Type: band heat sealing
- Post: narrow, from the rear
- Max. speed: 7 m/min
- Temperature: electronic control
- Main application: footwear and automotive seats
Applications
Frequently asked questions
Why is the post at the rear? The rear post configuration lets the machine reach the inside of shoes and the back of car seats where a front post could not, which is essential for these specific applications.
Can it be used for other types of footwear? It is mainly designed for technical footwear with heat-sealed seams, but it can be adapted to other types of footwear that need seams sealed on the inside. At Maquinorya we advise you on your specific application.
