PFAFF 8362 portable hot wedge welders

PFAFF 8362 portable and mobile hot wedge welders for joining canvas, geomembranes and thermoplastic sheets both on site and in the factory. Six versions with silver or aluminium wedge and seam widths of 26, 40, 50 and 26+26 mm, for thicknesses from 0.2 to 3.0 mm. If you need a special technology (HF/RF high frequency, 3D welding or custom equipment), we discuss your case directly with the manufacturer.

Maquinorya is the official representative of PFAFF Industrial in Spain for welding and heat sealing machines. See on the PFAFF website

Models in the PFAFF 8362 series

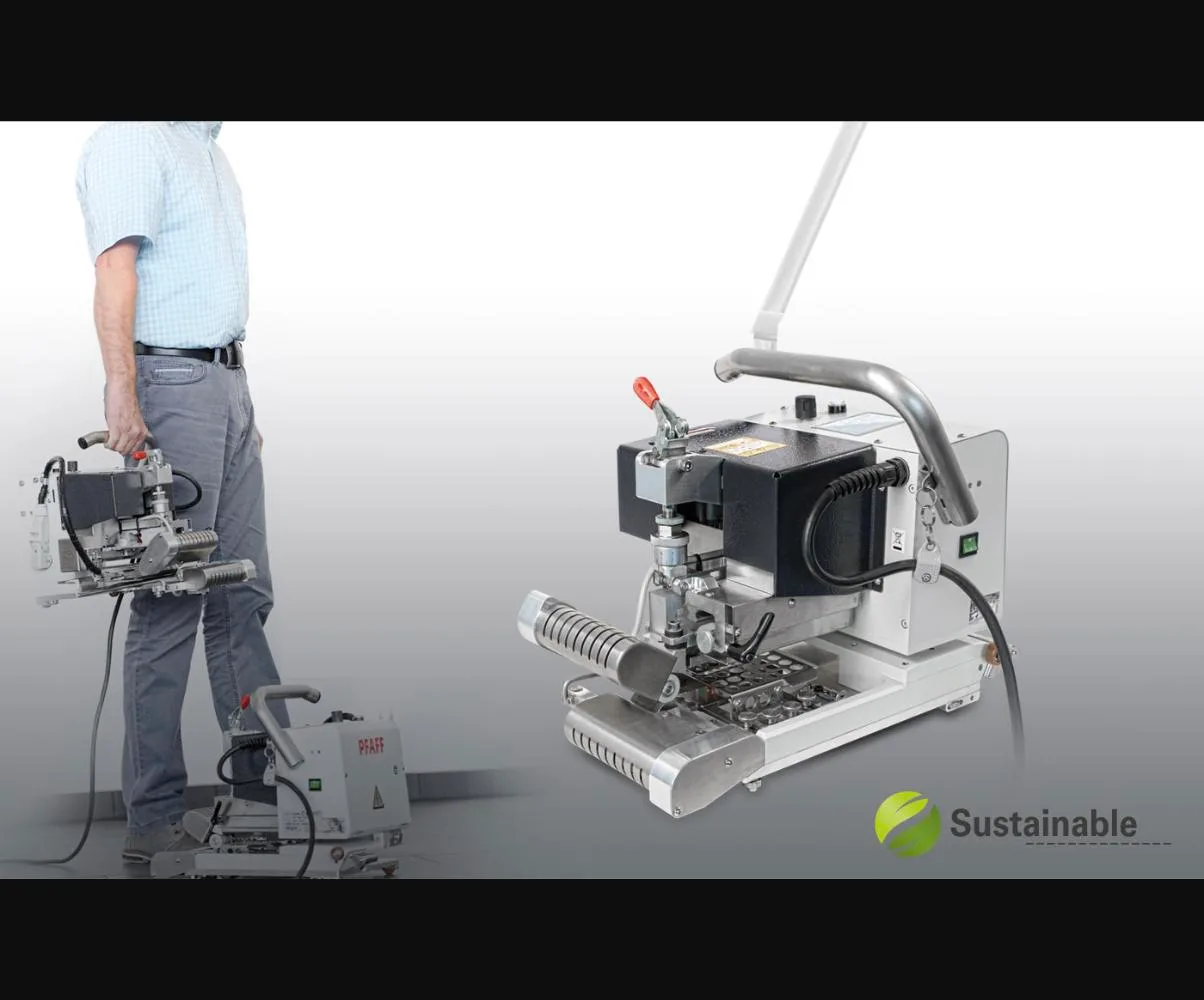

PFAFF 8362-122

Silver wedge, 26 mm overlap and only 13 kg. Sheets from 0.2 to 2.0 mm.

See data sheet →

PFAFF 8362-126

Silver wedge, 26 mm weld and digital temperature and speed panel. Ideal for pool covers.

See data sheet →

PFAFF 8362-226

Aluminium wedge, 26 mm overlap and SMART functions. Materials from 0.8 to 3.0 mm.

See data sheet →

PFAFF 8362-240

Aluminium wedge, 40 mm overlap, electric movement and differential drive.

See data sheet →

PFAFF 8362-250

Aluminium wedge and the widest overlap in the series: 50 mm. With rail guide.

See data sheet →

PFAFF 8362-326

Simultaneous double seam of 26+26 mm. The most productive in the series.

See data sheet →

Series comparison

Model	Wedge type	Overlap width	Material thickness	Key feature
PFAFF 8362-122	Silver	26 mm	0,2-2,0 mm	The lightest: 13 kg
PFAFF 8362-126	Silver	26 mm	0,2-2,0 mm	Digital panel
PFAFF 8362-226	Aluminium	26 mm	0,8-3,0 mm	SMART functions
PFAFF 8362-240	Aluminium	40 mm	0,8-3,0 mm	Differential drive
PFAFF 8362-250	Aluminium	50 mm	0,8-3,0 mm	Rail guide
PFAFF 8362-326	High-strength hot wedge	26+26 mm	Thick thermoplastics	Simultaneous double seam

Which model do you need?

For thin sheets from 0.2 to 2.0 mm (PVC canvas, TPU membranes, pool covers), the silver wedge of the following models is enough: 8362-122 and 8362-126; for pool covers we recommend the 8362-126, with a 26 mm weld and joining funnel (/001) or joining and hemming funnel (/003). For materials from 0.8 to 3.0 mm and intensive production, the aluminium wedge of these models is the better choice: 226, 240 and 250, with overlaps of 26, 40 and 50 mm. For maximum productivity on geomembranes, the 8362-326 welds two seams at once.

These machines are portable. If your application is on a bench or in stationary production, look at the hot wedge welders of the 8320 series, or the hot air and ultrasonic.
